89A32 Feeler Gauge Portable Durable Various Specifications Arc Stainless Steel Feeler Gauge Gap Gauge Rangefinder 1pc

Brass Feeler Gauge Sheet Feeler Gauge

Durable for use:

Constructed from hardened tempered steel with a lube oil coating to prevent pitting and corrosion.

Wide application:

Suitable for designers, engineers, mechanics to measure the thickness of tappet clearances, spark plugs gaps, bearing clearances, piston ring gaps and other hard to reach places.

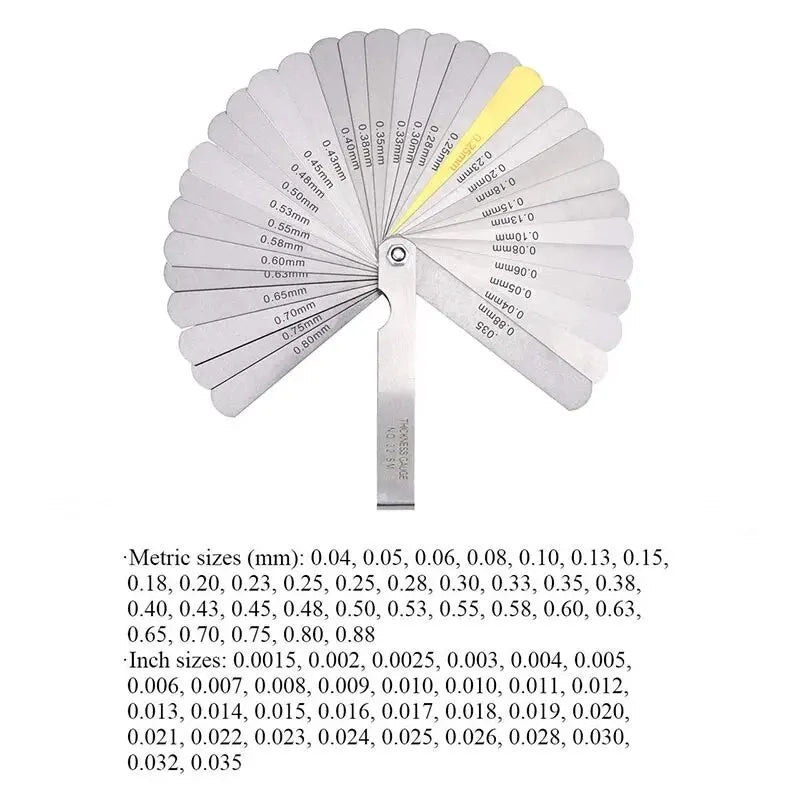

Metric sizes (mm):

0.04, 0.05, 0.06, 0.08, 0.10, 0.13, 0.15, 0.18, 0.20, 0.23, 0.25, 0.25, 0.28, 0.30, 0.33, 0.35, 0.38, 0.40, 0.43, 0.45, 0.48, 0.50, 0.53, 0.55, 0.58, 0.60, 0.63, 0.65, 0.70, 0.75, 0.80, 0.88.

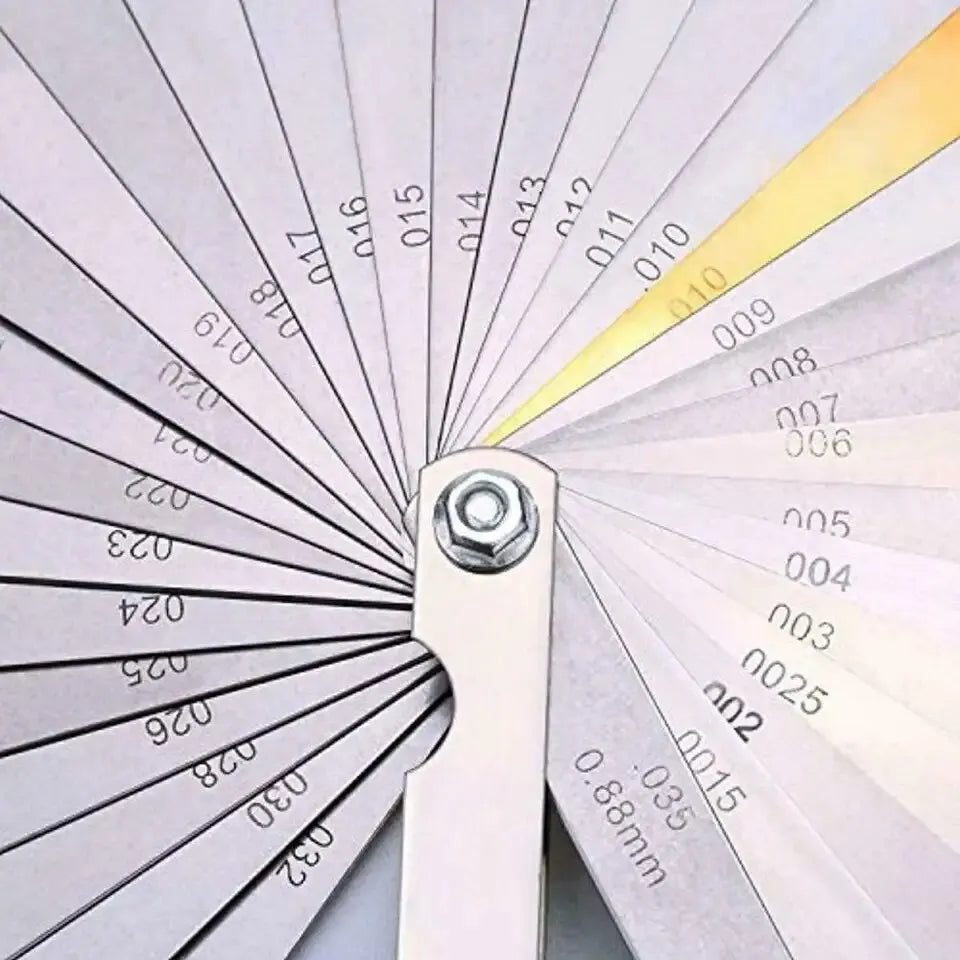

Inch sizes :

0.0015,0.002,0.0025,0.003, 0.013, 0.004,0.005, 0.015, 0.006,0.007, 0.017, 0.008,0.009,0.010,0.011,0.0120, 0.023, 0.014, 0.025, 0.016, 0.028, 0.018,0.019, 0.020,0.021,, 0.022,, 0.024,, 0.026,, 0.030,0.032,0.035

Specifications:

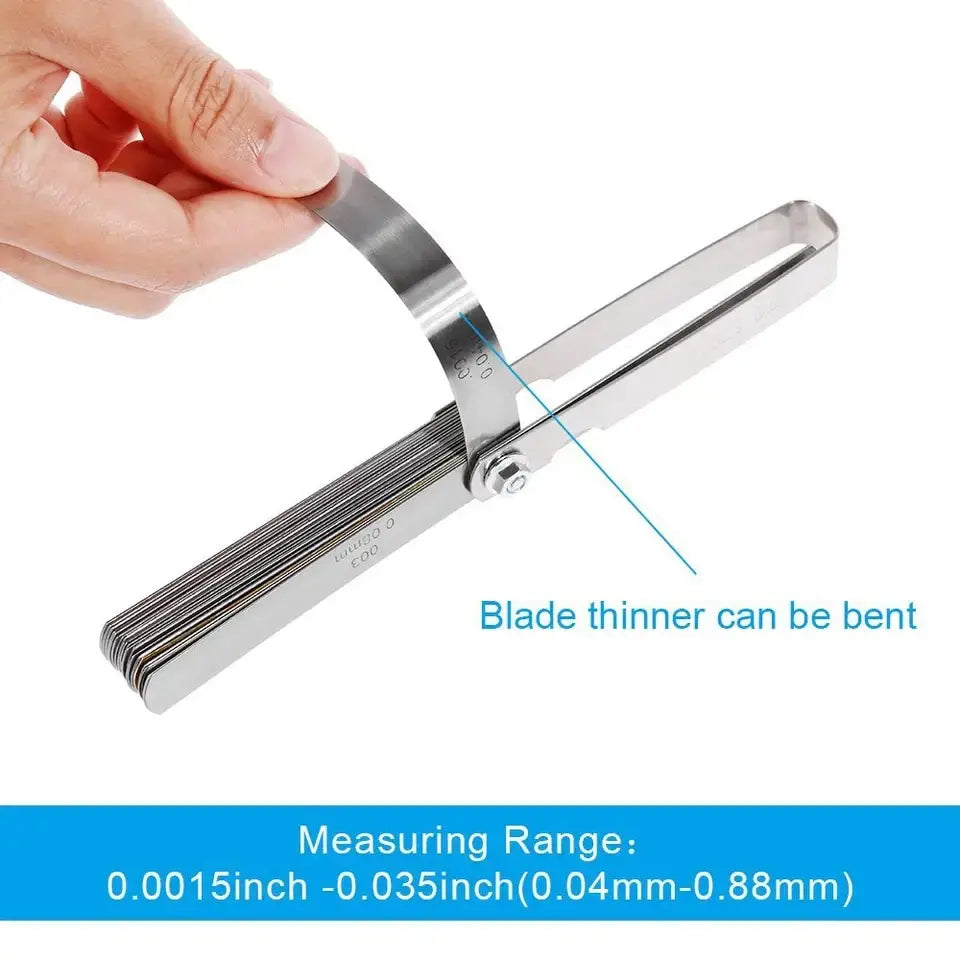

Measuring range: 0.0015 inch/ 0.04 mm to 0.035 inch/ 0.88 mm

Material: 65 Manganese Stem

Blades: 32 pieces

Package includes:

1 x Feeler eye

Notice:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.
