100Pcs Car Accessories Terminal Eletrico Wire Conector Crimp Connectors Terminal Connector Cable End Crimps Insulated Ferrule

If you want more item, please contact us,we will add the quantity and give you the cheaper price

Crimping Pliers Click on the follow picture

Size Selection

Cross-section
24 AWG Wire : 0.34mm²
22 AWG Wire : 0.5mm²

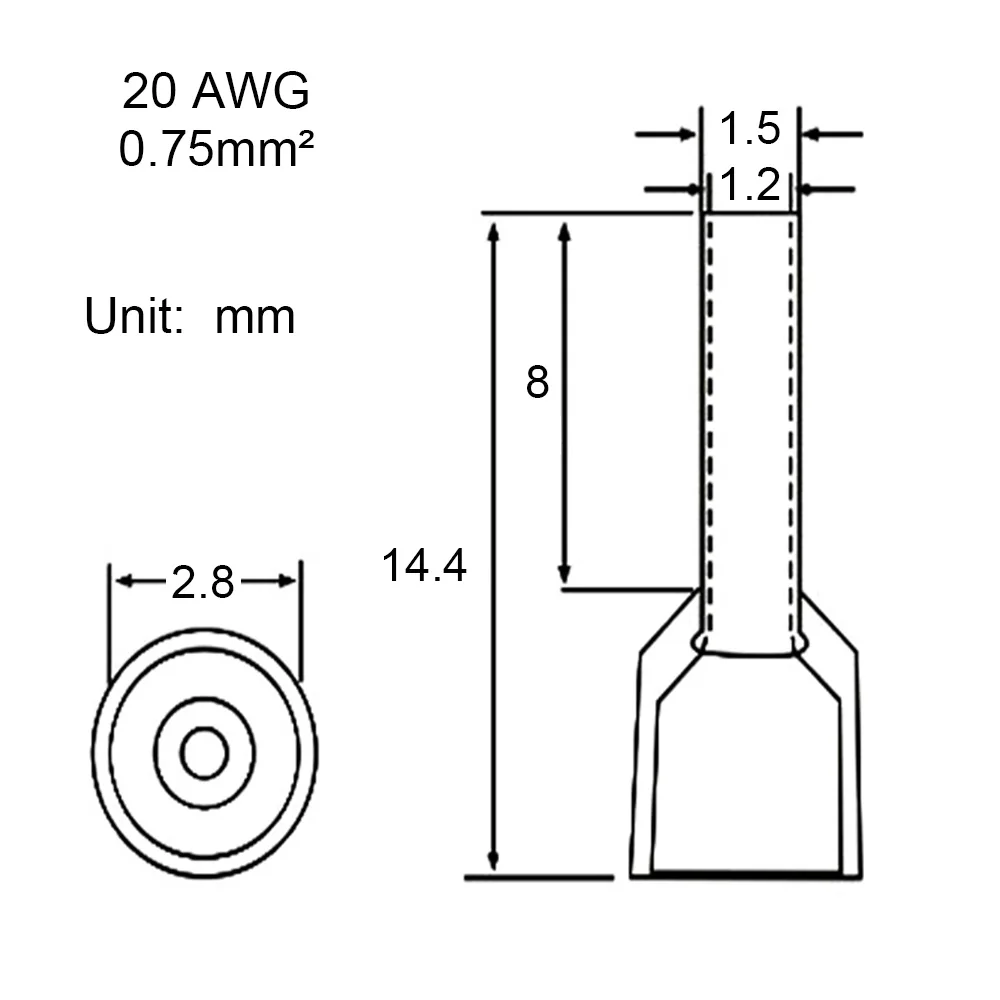

20 AWG Wire : 0.75mm²
18 AWG Wire : 1.0mm²

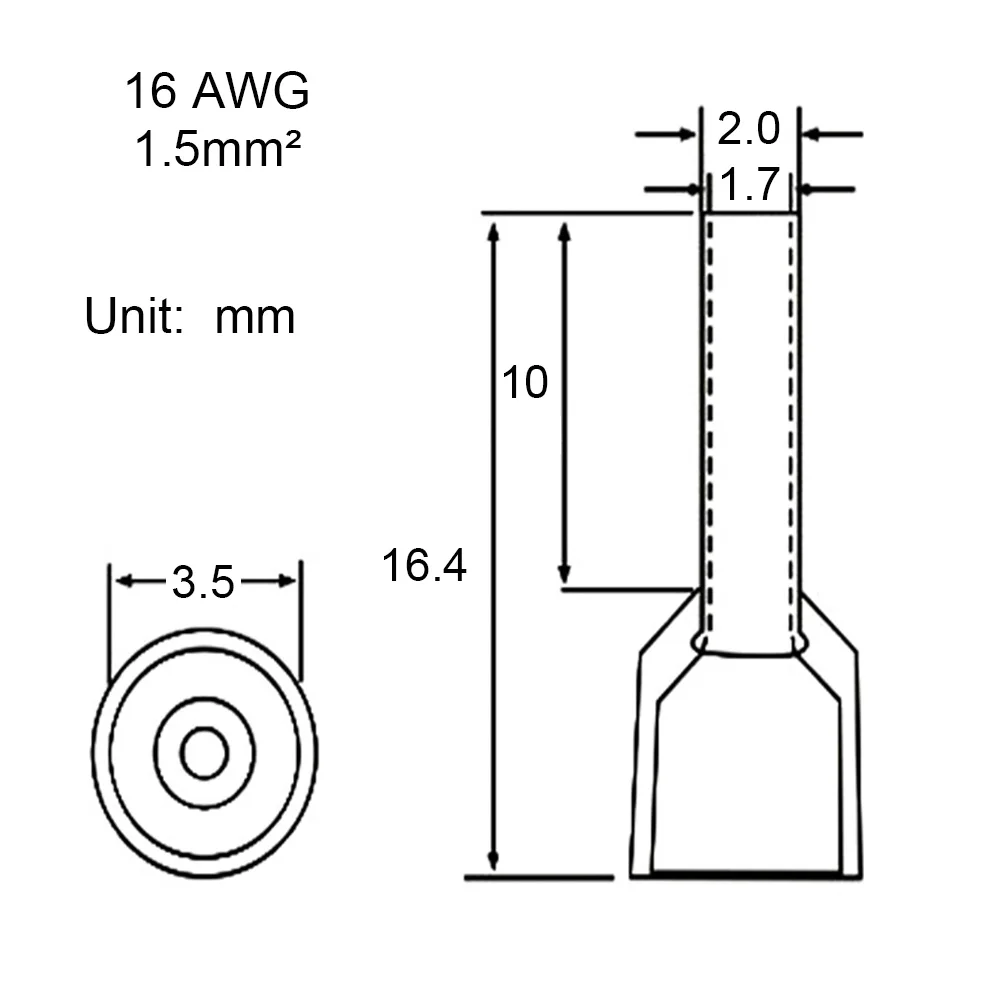

16 AWG Wire : 1.5mm²
14 AWG Wire : 2.5mm²
12 AWG Wire : 4.0mm²

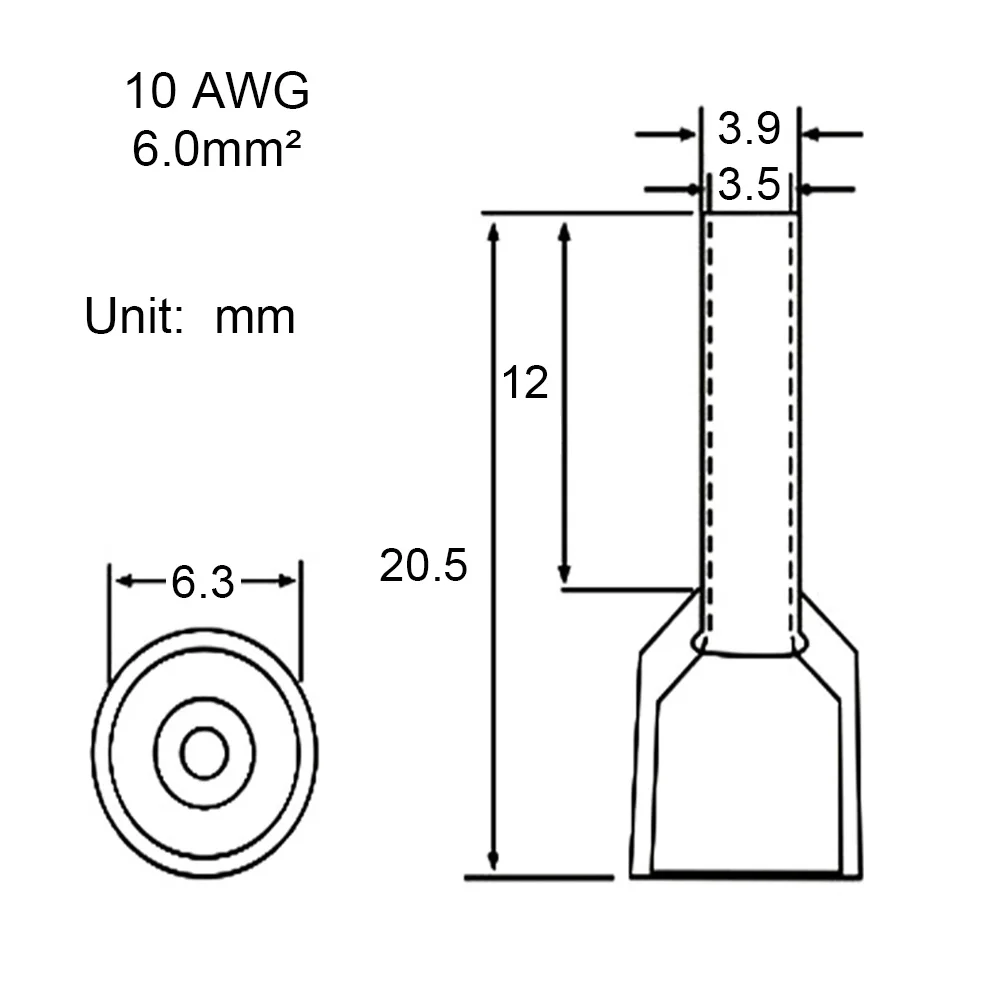

10 AWG Wire : 6.0mm²

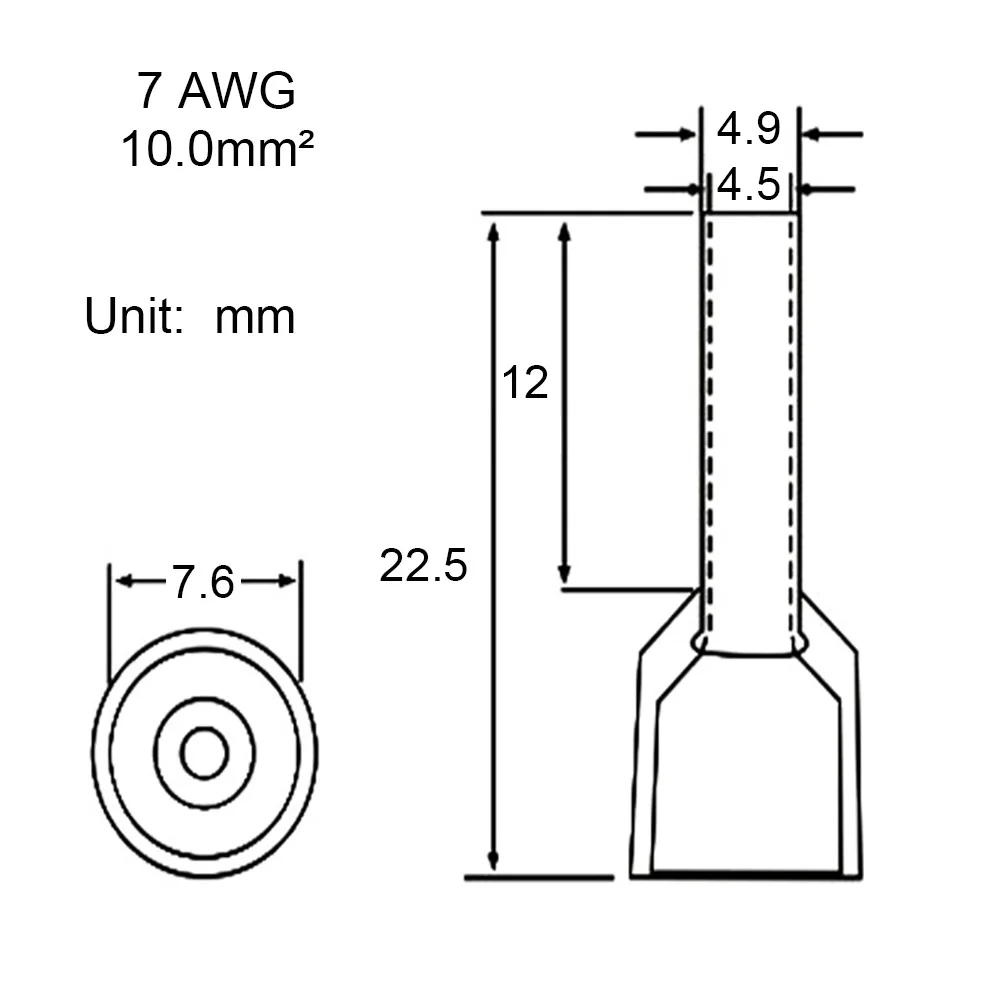

7 AWG Wire : 10.0mm²

Specification

Material: Brass, Nylon
Surface Finishing: Tin-plating
Operating temperature : -40℃ ~ 105℃ (40℉ ~ 221℉)
Maximum Voltage:300v
Package Includes:
100 x Terminals

Application Method

1.Strip the wire
2.Insert wire into terminal
3.Crimp the terminal with wire pliers
4.Install on equipment

Product Advantage

Terminal surface is plated with tin which ensures good conductivity and corrosion resistance.

Insulated sleeves would provide support for the wire in order to avoid bend when crimping.

Suitable for the connection in power cable with electrical equipment.

Used widely in machinery, electric power equipment, home appliance, computers or automobiles.
